AgileCycler color touch gradient thermal cycler



AgileCyclerTM features a truly intuitive user interface with a colored touch screen. Precision is enhanced by a 4-zone temperature regulation that corrects for any differences between the 8 peltier elements. AgileCyclerTM can utilize a USB network to control up to 30 completely independent cycler modules for higher throughput or multi-user situations.

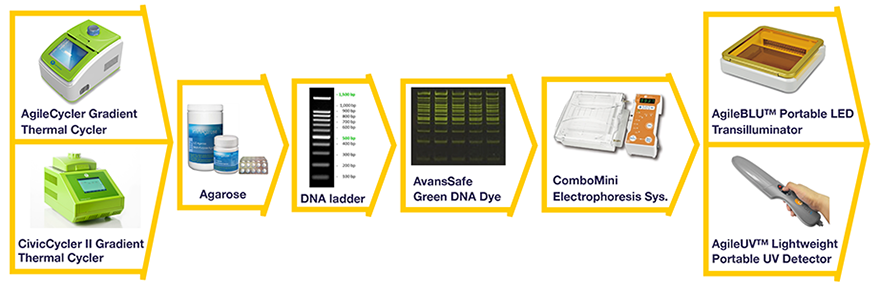

Related Product : CivicCycler II thermal cycler





1.  Each thermal block has 4 independent temperature control sensors and 8 peltier heating units, ensuring that temperature control and uniformity across the block surface is accurate and reproducible time after time.
2. Five interchangeable reaction modules provide various kinds of PCR testing methods and each module has Gradient function.
3. Module with dual block allows 2 independently controlled protocols to be run simultaneously.
4. 4. 8” TFT large color touch screen with graphical display allows for easy run setup and monitoring.
5. The status of the cycler is always visible with actual and target temperatures displayed graphically in real time.
6. LAN function provides the ability to connect up to 30 thermal cyclers to one PC, eliminating the need to program each thermal cycler or remember stored program names.
7. Max. gradient 30℃ takes 0.2ml tubes : non-skirted, semi and fully skirted plated.
8. Connects optional input devices Mouse, Keyboard and transfers data and performs software updates by USB Drive.





Sample capacity

Heating Rate

Cooling Rate

96 x 0.2ml(Gradient)

4.5 ℃ / s

4 ℃ /s

60 x 0.5mL(Gradient)

5 ℃ /s

4 ℃ /s

48 x 0.2mL dual block(Gradient)

5 ℃ /s

4 ℃ /s

48 x 0.2mL + 30 x 0.5mL dual block (Gradient)

5 ℃ /s

4 ℃ /s

384-well PCR microplate (Gradient)

3 ℃ /s

2 ℃ /s



Temperature Range

0 ~ 100 ℃
4~100 ℃ (384 well)

Uniformity

<= ±0.2 ℃ (30~72 ℃ , 10 Sec)
<= ±0. 3 ℃ (90 ℃ , 10 Sec)

Accuracy

<= ±0.1 ℃ (30~99 ℃ 0

Display Resolution

0.1 ℃

Temperature Control

Block\Tube

Gradient Uniformity

<=± 0.2 ℃

Gradient Accuracy

<=± 0.2 ℃

Gradient Temp. Range

30 ~ 100 ℃

Gradient Span

1 ~ 30 ℃ between 30~99.9 ℃

Hot Lid Temperature

30 ~ 110 ℃

Over-temperature cut-out

Yes

Number of Programs

10,000 +(USB FLASH)

End of program alarm

Yes(can be disabled)

Max.No.of Step

30

Max.No.of Cycle of each step

100

Time Increment/Decrement

1 Sec ~ 9 Min 59 Sec

Temp. Increment/Decrement

0.1 ~ 9.9 ℃

Auto-start on power failure

Yes

Connection to PC control software

Yes

Gradient calculator

Yes

Password protection

Yes

User level

Yes

Hold at 4 ℃

Yes

Print ing

Yes

Wireless blue tooth

Yes

LAN to computer

Yes

LCD

8 inch , 800×600 p ixels , TFT

Real time temperature sensor feedback

Yes

Communication

USB2.0 , LAN

Noise emission

Very low

Dimensions

38 c m×24 c m×26 c m (L×W×H)

Weight

8.5kg

Power Supply

85 ~ 264VAC , 47 ~ 63Hz , 600 W



Cat. No. Item
AC-96 AgileCyclerTM (96 x 0.2mL, gradient)
AC-60 AgileCyclerTM (60 x 0.5mL, gradient)
AC-48X2 AgileCyclerTM (48 x 0.2 mL dual block, gradient)
AC-48N30 AgileCyclerTM (48 x 0.2 mL + 30 x 0.5 mL dual block, gradient)
AC-384 AgileCyclerTM (384-well PCR microplate, gradient)
