ComboMini Electrophoresis System



The ComboMiniTM Electrophoresis System is a compact horizontal running unit with integrated power supply that is small enough to fit in the palm of your hand. It is ideal for several applications, including Northern and Southern blotting, Cosmid library restriction analysis, STS screening, microsatellite analysis, PCR fragment analysis, RFLP analysis, DNA finger-printing and high throughput analysis.


Detachable power supply

The safety lid is vented to help dissipate heat generated during electrophoresis.

Complete UV-transmittancy: made of highly UV-transmittable plastic, allowing direct observation of bands during electrophoresis by installation of the bath on a transilluminator.

Current will only run through the system when the lid is properly in place on top of the gel box. The power is automatically paused when the cover is lifted.

Output voltage can be selected from among 7 levels (18V, 25V, 35V, 50V, 70V, 100V and 135V). Input voltage can be set between 100–240V, allowing worldwide use.

Specially designed tank shape reduces the temperature difference between the buffer resulting in better cooling effect.

The timer can be set to a range of 1–99 minutes and includes an alarm function.

A memory function is provided for storage of the previous timer and output settings.

When the electrophoresis current exceeds the peak current, it will automatically adjust the voltage to lower the current value, thus improving the experimental reproducibility.

Complete system : Unit includes ONE electrophoresis system + ONE gel maker set (4combs, 1 large tray, 1medium tray, 1 small tray, 1 gel casting stand).

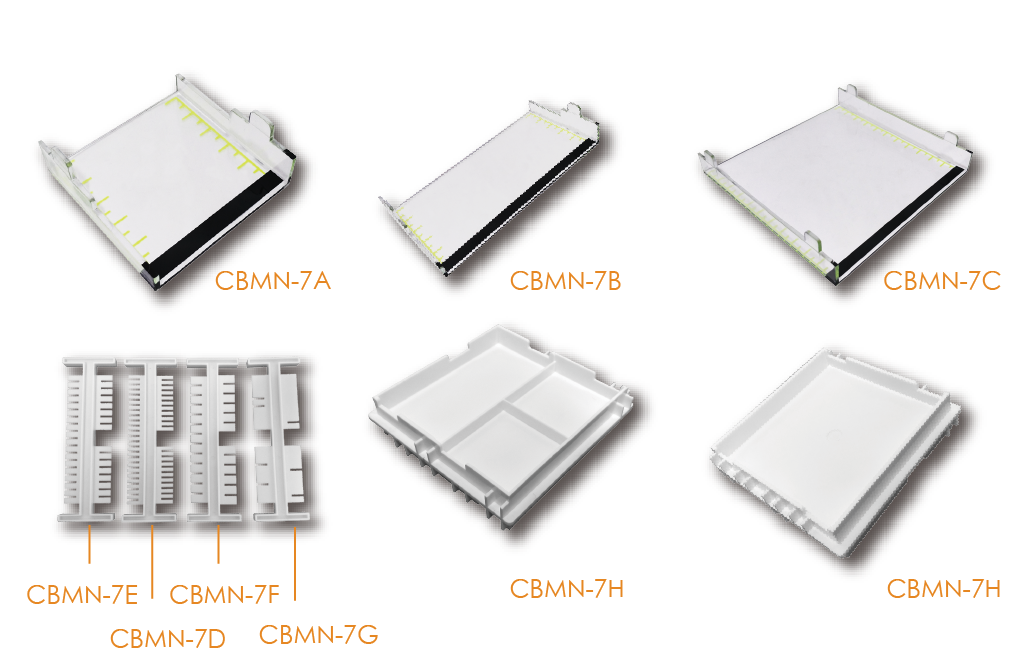

Model

Description

Specifications/dimensions

Quantity

CBMN-7A

 Small tray

60mm(W)×60mm(L)

 CBMN-7B

Medium tray

120mm(W)×60mm(L)

 1

CBMN-7C

Large tray

120mm(W)×120mm(L)

 1

CBMN-7D

Comb 1

1.0mm thickness , 25 / 11 teeth

 4

CBMN-7E

Comb 2

1.5mm thickness , 18 / 8 teeth

 1

CBMN-7F

Comb 3

1.5mm thickness , 13 / 6 teeth

 1

CBMN-7G

Comb 4

 2.0mm thickness , 3 / 2 teeth

 1

CBMN-7H

Casting stand
(double-sided)

 138mm(W)×138mm(L)×36mm(H)

 1



Capacity

Max 500ml

Inner dimension (W×D×H)

150×150×47mm

Timing function

1min~999min or continuous, with pause function

Input power

AC100~240V、AC50/60Hz

Output voltage

Constant peak voltage (140V), impulse control

Dimensions (W×D×H)

260×170×68mm

Net weight

0.78kgs

Download

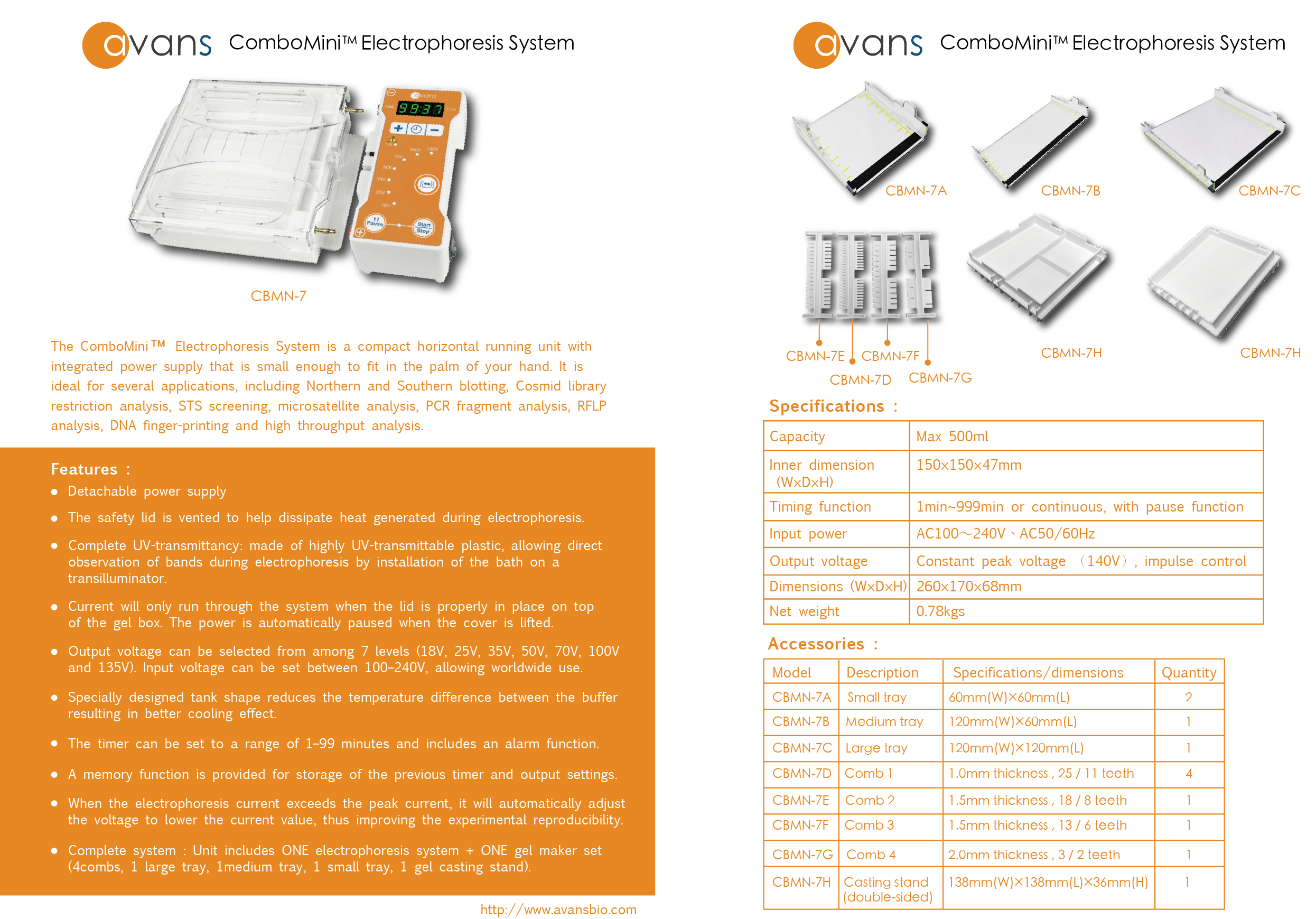

■BrochureAvansBio ComboMini Brochure.png,
